Radial Forming

Radial forming is a process in which parts are formed by actuating a system of dies radially toward the center of the workpiece. Dies are moved radially inward by a wedge actuation system which converts axial force into radial force. Radial forming is well suited for producing squares, hexes, coarse splines, stakes, and other symmetrical geometry on shaft components. The process is also well suited for mechanical fastening by crimping and for crimping vibration resistant nuts.

Benefits of Radial Forming

  • High accuracy and repeatability
  • No material waste
  • Easily adjustable
  • Fast cycle times
  • Small machine footprint
  • Quick change tooling design

radial forming processRadial Forming

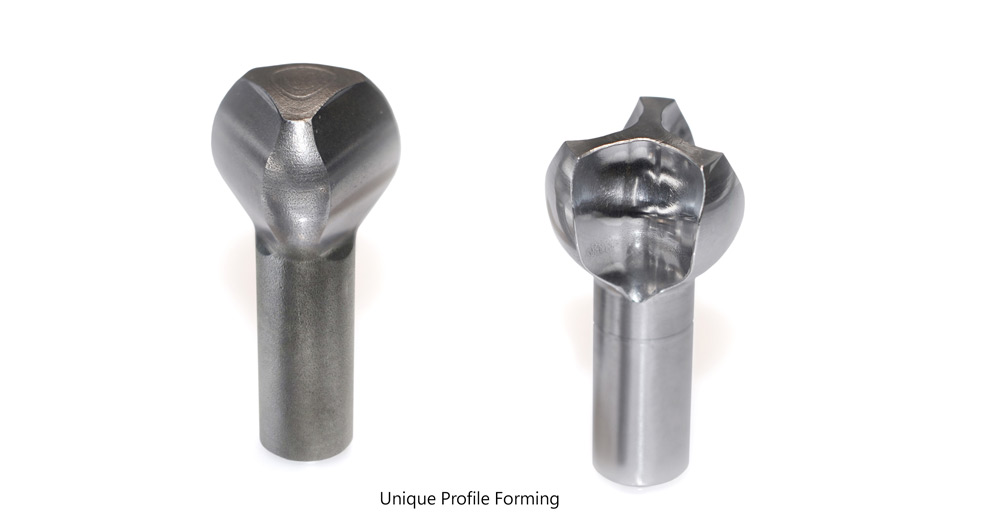

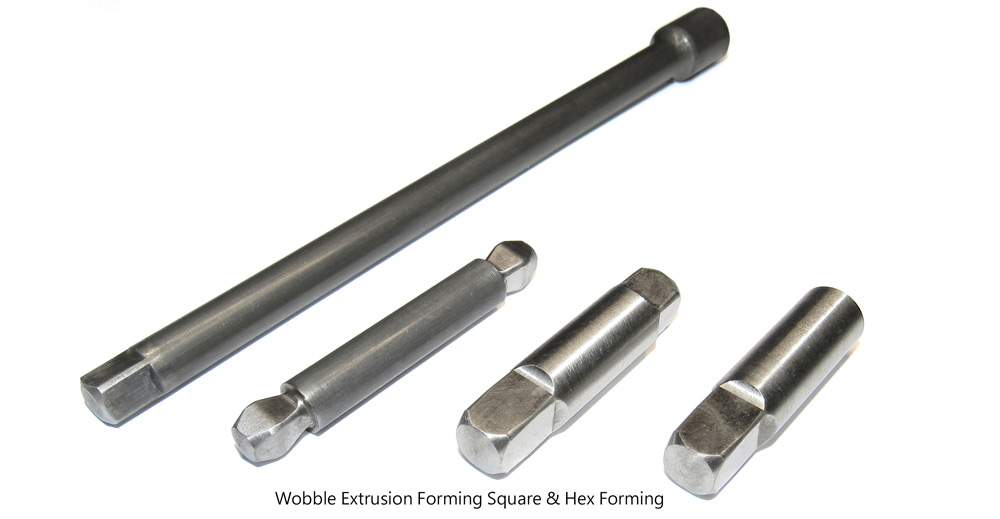

Radial forming can be used to deform a round or pre-shaped blank into a more complex form with zero material waste. As the dies plunge in, material is formed radially inwards and upwards between the dies. Shapes that can be formed include high module splines, polygons, square, hex and other similar axial forms.

radial crimping processRadial Crimping

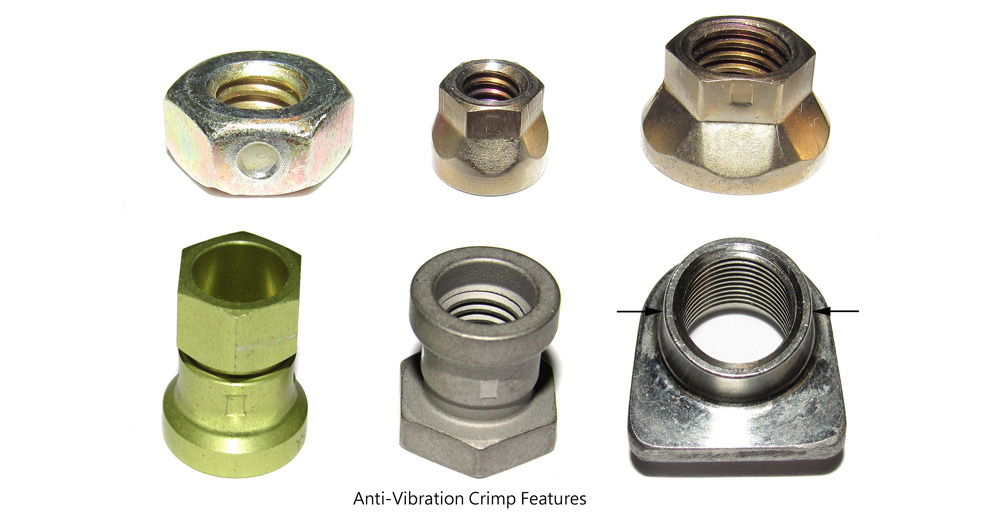

Radial crimping can be used to form vibration resistant nuts for the aerospace and automotive industry by crimping finished nuts into a non-round form. Nuts can be crimped with anywhere from 2 to 6 dies in materials such as Inconel, Waspaloy, titanium, alloy steel and stainless steel. Nuts can be crimped on round locking collars and can be oriented to be crimped on the flats or other features.

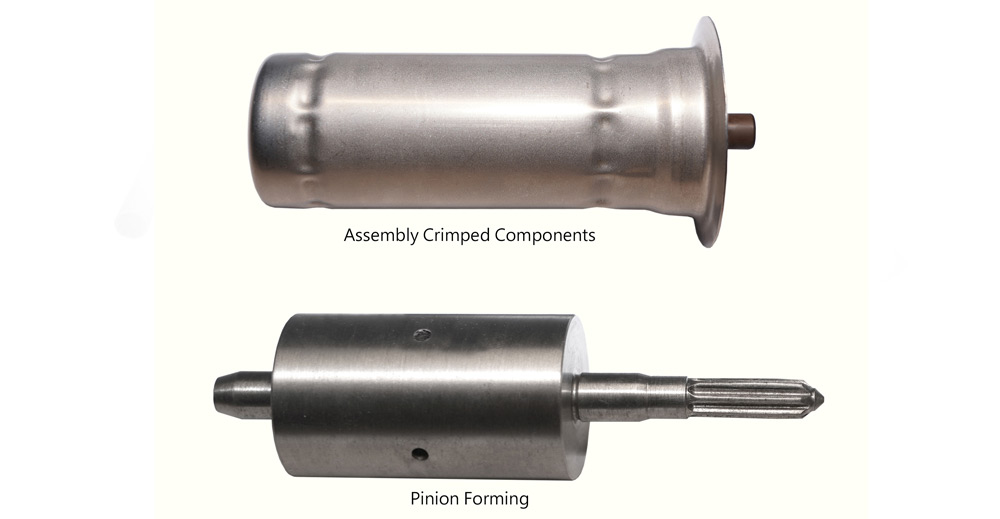

Components such as rings of a dissimilar material or a bearing can be crimped onto a shaft to generate an assembly locking feature. An undercut is typically cut into the shaft and the ring or bearing can then be crimped permanently into the undercut.

Improve Part Quality While Reducing Product Cost

Ratchet Square Drive
Automotive Couplings
Bearing Retention Rings
Rotating Band Crimping
Appliance Components
Drill Shanks
Universal Joints
Solenoid Shafts
Hand Tool Components
Heavy Truck Splines
Electric Motor Lamination Stakes
Power Tool Shafts
Torsion Bar Mounts
Medical Tools
Heat Sinks

KINEFLOW RADIAL FORMING MACHINES

radial forming machines

Designed for:

  • Precise radial forming and crimping
  • Solid or tubular blanks
  • Pinions, high module splines, polygon forms, and similar axial forms operation
  • Fast cycle times
  • Robotic or manual load
