KINEFLOW AND KINECRIMP

RADIAL FORMING MACHINES

Designed for

  • Radial forming and crimping of precision forms and profiles on shaft components and assemblies
  • Solid and hollow component processing
  • Indenting and raised material forming
  • Producing squares, hexes, splines, anti-vibration crimps, assembly crimps, press fit intereference skives, and custom geometry



The KINEFLOW and KINECRIMP machine line offers high performance radial forming machines in vertical and horizontal axis which are capable of applying precise radial tool motions by actuating a system of dies radially toward the center axis of the work piece. The KINEFLOW and KINECRIMP system is designed for forming precision features such as squares, hexes, splines, anti-vibration crimps, mechanical assembly crimps, press fit interference features, and other custom geometry on solid and hollow components such as motor shafts, aerospace nuts, ratchet extensions, valve bodies, steering racks, and actuator shafts.

KEY KINEFLOW AND KINECRIMP BENEFITS

  • Precise and repeatable radial profile forming on solid and hollow components
  • Single handling net shape chipless forming
  • Symmetrical and asymmetrical form profiles
  • Vertical and horizontal forming axis for easy load/unload handling
  • Quick change tooling features with minimal setup
  • High forming loads in compact footprint
  • High speed throughput with KineMat auto load feeder units

KINEFLOW and KINECRIMP STANDARD FEATURES MAXIMIZE FORMING PRODUCTIVITY

  • Automatic synchronized die motion to common centerline
  • High stiffness forming structure
  • Precision die carrier
  • Hydraulic or servo electric die positioning
  • Single point die position adjustment
  • Vertical or horizontal forming axis
  • Adjustable pneumatic part locator unit
  • Quick change tooling
  • Ergonomic operator work heights

FORMING CAPABILITY

  • HMI touchbutton die position, speed, and force settings
  • CNC servo electric and servo hydraulic die positioning
  • Go/No-Go die force envelope monitoring
  • Phased form tooling to part feature positioning
  • Preset tooling configurations
  • Multi pocket die carrier for multiple form tools
  • Servo part stop/ejection cylinder

AUTOMATION & SMART MATERIAL HANDLING

  • Magazine and bulk storage hopper feed units
  • Pick and place part handling
  • Robotic part handling
  • Warm forming systems with induction heating and temperature monitoring
  • Automatic in-line part gaging and inspection unit integration

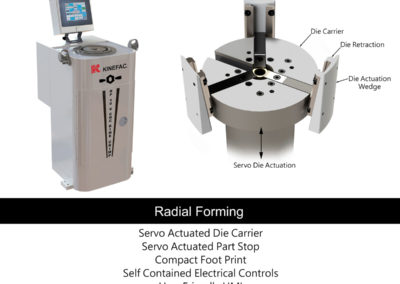

radial forming machine kineflow

Look Inside

See it in Action



 RP-8 KINEFLOWRP-10 KINECRIMP
Maximum Part Diameter Typical25mmM20
Maximum Forming Load (kN)2,000 110
Standard Die ActuationHydraulicServo Electric
Die ConfigurationsUp to 8 Typical2, 3, 4 Typical
Maximum Die Stroke (mm)65.5
Typical Crimp Cycle (Forming Only)2 to 4 Seconds2 to 4 Seconds
Vertical Working Height (mm)1,0001,000
*Machine specifications subject to change on a per-application basis.
