CNC 5/6 Axis KineCoiler

A High Precision, High Speed, Single- or Two-Point Coiling System with Left and Right Hand Wind Capability for Industrial, Electronic, and Medical Spring Applications.


The CNC 5/6 Axis KineCoiler produces coils for industrial, electronic, and medical device applications. Coils can vary from simple close-wound coils to coils that have combinations of characteristics such as variable pitch, diameter, and stiffness. The machine can produce coils complete, to a precise length with no additional processing requirements such as trimming.

Using our unique manufacturing capability, the KineCoiler is capable of coiling round, flat and shaped wires. Special KineCoil coiling point tooling overcomes the challenges of coiling stainless steel wire encountered with standard carbide coiling points.


Deep Dive: Learn About The Deflection Coiling Process

cnc coiling machine kinecoiler

Single-Point Coiling System

  • Available as a right or left hand unit.
  • Combined actions of the final guide, arbor, and coiling point create three-point bending support.
  • Arbor acts as an anvil around which the wire is deflected.
  • Suitable for a wide range of wire shapes and materials.

Two-Point Coiling System

  • Right and left hand wind capability on the same unit.
  • Arbor creates a shear plane to trim the coil into discrete lengths.
  • Smooth finish on the inside of the coil is achievable.
  • Ability to form smaller index coils.


  • 0.127 – 0.762mm (.005 – .030 in.) wire range
  • Single-point or two-point coiling mode
  • Right or left hand coiling direction
  • ± 0.010mm (± .0004 in.) coil diameter tol.
  • 3 typical minimum index
  • Unlimited wire feed length
  • ± 0.010mm (± .0004 in.) wire feed tol.

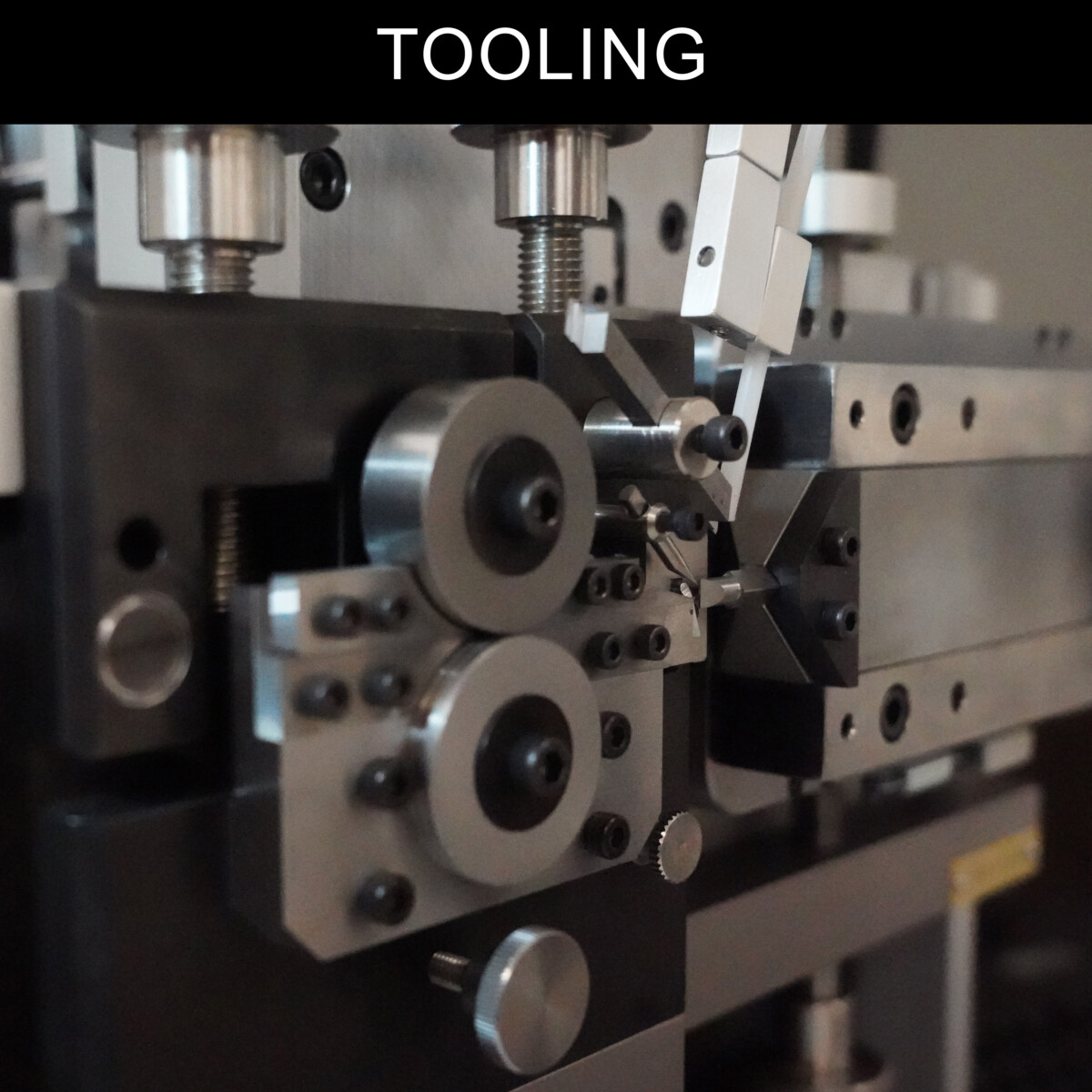

  • Quick-set tooling
  • User friendly coil program generator
  • Programmable feed, pitch, diameter, and cut
  • Precision adjustable cut-off
  • Integrated or optional external dereeler
  • Universal feed roll design
  • Electronic length gauging option
  • Integrated video microscope with LED
  • Remote diagnostics support
  • Compact machine base with optional casters

See it in Action

Explore Features


Precision, Accuracy and Automatic Processing Under Your Control

KineVision offers reliable measurement and automatic compensation capability for coils requiring tight OD and pitch control.

With its unique Every Coil Correct™ technology and auto-rejection of noncompliant coils, KineVision minimizes the need for secondary inspection.
